| Brand Name : | FCTEL/ODM/OEM |
| Certification : | ISO9001 |
| Model Number : | FC-DCM4 |
| Price : | 120 |
| Delivery Time : | 5-15days |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 2000 Pieces peer week |

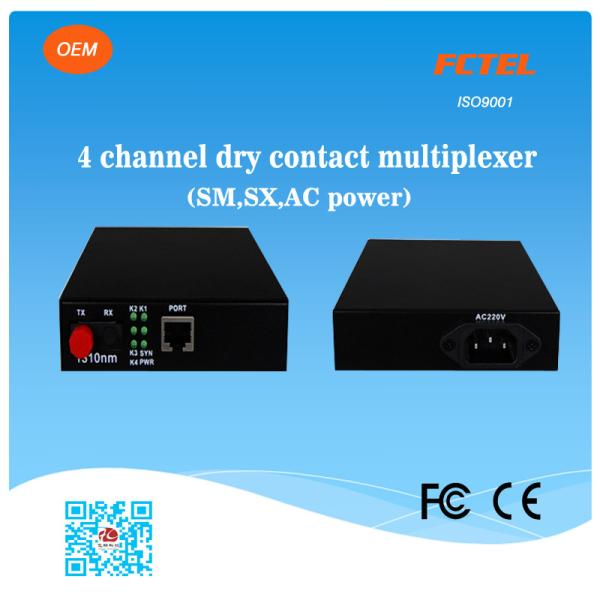

Single Mode Fiber Data Storage Dry Contact Closure
FC-DCM4 Dry Contact closure provides a one-way road switch or 2 two-way switch in optical fiber transmission, which solves the problem of electromagnetic interference, the interference and the lightning damage, improve the reliability of communication, data security and confidentiality, and can be widely used in various industrial control, process control and traffic control and other occasions, especially for banks electrical and electromagnetic interference to the environment, the special requirements of the Department and the system.
Product Features of Dry Contact Closure
Ø can be configured as an input (a) / 2 inputs (a) / 4 inputs (out) / 1 input + output / 2 inputs + output mode
Ø Enter the normally open normally closed switch automatically detects when the input what state switch output
that is why the state, to facilitate the project opened
Ø switch turned on when not connected to other switches or fiber
state is stable, does not appear chaotic action status
Ø can support one-way and two-way four-way switch two-way switch
Ø Each has a switch on and off the lights
Ø switch interface Lightning reach IEC61000-4-5 (8 / 20μS) differential mode: 6KV, impedance (2Ω);
Common mode: 6KV, impedance (2Ω) standard
Ø optional AC 220V, DC -48V, DC + 24V, DC power no positive and negative points;
Technical parameters of Dry Contact Closure
Fiber | Multi-mode Fiber | 50/125um, 62.5/125um, |
Maximum transmission distance: 5KM@ 62.5/125um single mode fiber, attenuation (3dbm/km) | ||
Wave Length: 820nm | ||
Transmitting power: -12dBm (Min) ~-9dBm (Max) | ||
Receiver sensitivity: -28dBm (Min) | ||
Link budget: 16dBm | ||
Single-mode Fiber | 8/125um, 9/125um | |
Maximum transmission distance: 40Km | ||
Transmission distance:40KM @ 9/125um single mode fiber, attenuation (0.35dbm/km) | ||
Wave Length: 1310nm | ||
Transmitting power: -9dBm (Min) ~-8dBm (Max) | ||
Receiver sensitivity: -27dBm (Min) | ||
Link budget: 18dBm | ||
Switch | Respond Time: <0.5ms | |
Switch Signal: 30VDC/0.5A | ||
The maximum switching frequency 50HZ | ||
Physical interface: RJ45 | ||
Dimension | Product size: 216X130X31mm(WXDXH) | |
Piece weight: 1.3 Kg/Pcs (Mini) | ||
Power | Power supply: AC180V ~ 260V;DC –48V;DC +24V | |
Power Consumption:≤10W | ||
Working environment | Working temperature: -10°C ~ 50°C | |
Working Humidity: 5%~95 % (no condensation) | ||
Storage temperature: -40°C ~ 80°C | ||
Storage Humidity: 5%~95 % (no condensation | ||
