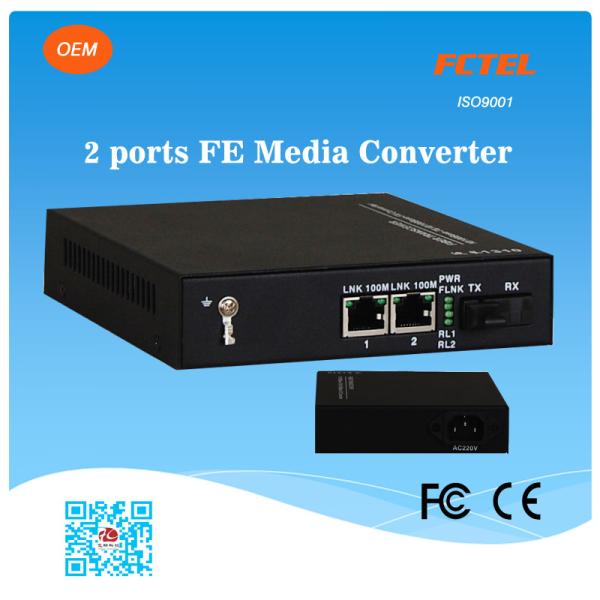

FCTEL OEM Industrial 2 Ports 10/100M UTP Fiber Optic Media Converter

Fibre Easy Communication Service Limited
Contact Now
    Buy cheap FCTEL OEM Industrial 2 Ports 10/100M UTP Fiber Optic Media Converter from wholesalers

    Buy cheap FCTEL OEM Industrial 2 Ports 10/100M UTP Fiber Optic Media Converter from wholesalers
    • Buy cheap FCTEL OEM Industrial 2 Ports 10/100M UTP Fiber Optic Media Converter from wholesalers
    • Buy cheap FCTEL OEM Industrial 2 Ports 10/100M UTP Fiber Optic Media Converter from wholesalers
    • Buy cheap FCTEL OEM Industrial 2 Ports 10/100M UTP Fiber Optic Media Converter from wholesalers

    FCTEL OEM Industrial 2 Ports 10/100M UTP Fiber Optic Media Converter

    Ask Lasest Price
    Brand Name : FCTEL/OEM
    Certification : ISO9001
    Model Number : FC-2MC100
    Price : 120
    Delivery Time : 5-15days
    Payment Terms : L/C,T/T
    Supply Ability : 2000 Pieces peer week
    • Product Details
    • Company Profile

    FCTEL OEM Industrial 2 Ports 10/100M UTP Fiber Optic Media Converter

    FCTEL OEM Industrial 2 Ports 10/100M UTP Fiber Optic Media Converter

    FC-2MC100 media converter is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media, which are 2 * 10/100Base-TX , 1*10/100Base-FX, mini standalone or 2U rack mount.

    Features

    1. International standards: IEEE 802.3z 1000Base-SX / LX 802.3ab 1000Base-T;

    2. Monitor with anti-crash auto-reset function for high-definition network cameras and other heavy duty applications;

    3. Support full and half duplex network communication, with auto-negotiation capability;

    4. VLAN support the transmission of long packets with protocol support IEEE802.1Q Items matching switch uses;

    5. Support UTP crossover Direct Connect adaptive, easy system commissioning and installation;

    6. Low power consumption. Low heat, stable operation for a long time;

    7. Single fiber and within the external power supply options, expand the user's needs;
    8. With OAM remote management ,LINK LED display,flow control.

    9. External AC220 / 5V power adapter, can also be an external DC-48V / 5V power adapter;

    Technical parameters


    Ethernet (UTP )

    Rate:10/100M, half/full duplex auto-negotiation

    Standard: IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability:4096

    Connector:RJ45, support AUTO-MDIX

    Ethernet(Optical)

    Wave Length:1310nm, 1550nm

    Interface rate:10/100M, full duplex

    Standard: IEEE 802.3, 100BASE-FX

    MAC Address Capability:4096

    Connector:FC/SC/LC

    Power

    Power supply:;DC -48V;DC +24V

    Power consumption:≤3W

    working environment

    Working temperature:-30ºC-+75ºC

    Storage temperature:-40ºC-+85ºC

    Working Humidity:0%~95 % (no condensation)

    MTBF:>100,000Hours

    Specifications

    Model

    FC-2MC100

    Functional Description

    1*10/100Base-T media converter with IEEE802.3af POE function

    Port Description

    1*FE POE Interface,1 100Base-FX fiber Interface

    Power

    AC180V ~ 240V;DC –48V;DC +24V,

    Power Consumption: ≤1W

    Dimension

    136(length) X 138(width) X31(height) mm

    weight

    0.4Kg/Pcs

    Reference

    1. 100M media converter

    2. 1000M media converter

    3. 4*10/100Base-TX to 100Base-FX media converter

    4. 4*10/100Base-TX to 100Base-FX +POE media converter

    5. 4*10/100Base-TX to 100Base-FX media converter

    6. 4*10/100Base-TX to 2*100Base-FX media converter

    7. 6*10/100Base-TX to 2*100Base-FX media converter

    8. 8*10/100Base-TX to 100Base-FX media converter

    9. 16*10/100Base-TX to 2*100Base-FX Ethernet switch

    10. 24*10/100Base-TX to 2*100Base-FX Ethernet switch

    11. 24*10/100Base-TX to 2*100Base-FX +POE Ethernet switch

    12. 48*10/100Base-TX to 2*100Base-FX media converter

    FCTEL

    OEM manufacturer

    Factory

    Located in Hangzhou

    Special requirements

    Customized

    Certifications

    ISO9001, CE

    Payment

    T/T, L/C, Wester Union, Paypal

    Shippment

    DHL, Fedex, TNT, UPS, EMS

    Warranty

    3 years

    Certification

    Our company is a manufacturer of fiber optical transmission equipments,with well equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in telecommunication and other industries. Our products are widely recognized and trusted by users.
