| Brand Name : | fibreasy |
| Model Number : | FC-PDH16 |
| Certification : | ISO2008 |
| Price : | 120 |
| Delivery Time : | 5-15days |
| Payment Terms : | L/C,T/T, Western Union, MoneyGram |
| Supply Ability : | 2000Pieces peer week |
FC-PDH16 Has perfect alarm, high reliability and stabilization, low power consumption, high integration, easy installation and maintenance.
The device is popularly with telecommunication operator.It is suitable in business for communication operator, governmentand kinds of entities.

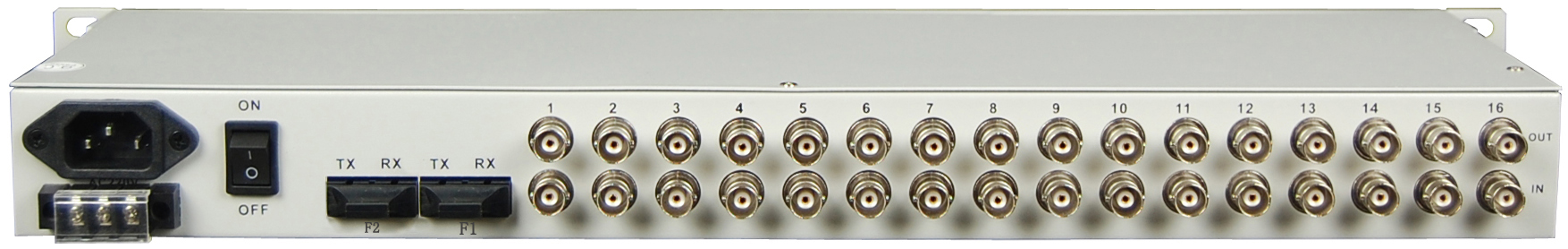

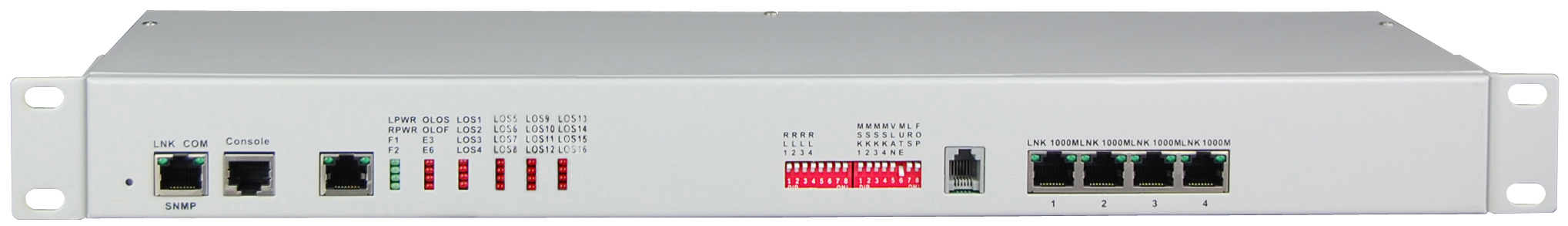

General information:1-16Channel E1 interface, master optical fiber interface and backup optical fiber interface, 1-4Channel10M/100MEthernet interface (Line Rate 100M) and 2 expansion interface. 4Channel Ethernet interface is switch interface, cansupport VLAN. 2 expansion interface can be used as the transmission channel ofRS232/RS485/RS422asynchronous data, voice signal, 2/4 lineE&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible.It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.
| Fiber | Multi-mode Fiber | 50/125um, 62.5/125um, Maximum transmission distance: 2KM@62.5/125um single mode fiber, attenuation (3dbm/km) Wave Length: 820nm Transmitting power: -12dBm (Min) ~-9dBm (Max) Receiver sensitivity: -28dBm (Min) Link budget: 16dBm |
8/125um, 9/125um Maximum transmission distance: 120Km Transmission distance: 120KM@9/125um single mode fiber, attenuation (0.35dbm/km) Wave Length: 1310nm Transmitting power: -9dBm (Min) ~-8dBm (Max) Receiver sensitivity: -27dBm (Min) Link budget: 18dBm | ||
| Single-mode Fiber | ||
| E1 Interface | Interface Standard: comply with protocol G.703; E1 Impedance: 75Ω (unbalance), 120Ω (balance); Jitter tolerance: In accord with protocol G.742 and G.823 Allowed Attenuation: 0~6dBm | |
| Ethernet interface (10/100M) | Interface rate: 10/100 Mbps, half/full duplex auto-negotiation Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) MAC Address Capability: 4096 Connector: RJ45, support Auto-MDIX | |
| Power | Power supply: AC180V ~ 260V；DC –48V；DC +24V Power consumption: ≤5W | |
| Dimension | Product size: 19 inch 1U 483X138X44mm(WXDXH) Simple packaging: 522X198X82 mm (WXDXH) Piece weight: 2.5KG | |
| Working environment | Working temperature: -10°C ~ 50°C Storage temperature: -40°C ~ 80°C | |
|
|
