| Brand Name : | Fibreasy |
| Model Number : | FC-PDH4 |
| Certification : | ISO2008 |
| Price : | usd190/pair |
| Delivery Time : | 5-10days |
| Payment Terms : | L/C,T/T , Western Union, MoneyGram |
| Supply Ability : | 2000 pieces per week |
4E1+4GE with Fiber 1+1, and 2RS232/422/485 PDH Multiplexer provides1-4ChannelE1 interface, master optical fiber interface and backup optical fiber interface,1-4Channel 10M/100M Ethernetinterface (Line Rate 100M) and 2 expansion interface. 4Channel Ethernet interface is switch interface, can supportVLAN.2 expansion interface can be used as the transmission channel ofRS232/RS485/RS422asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible. It has alarm function.The work is reliable, stable, and low power consumption, high integration, small size.
Features
Technical parameters
Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5KM@62.5/125um single mode fiber, attenuation (3dbm/km)
Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40KM@9/125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
Ethernet interface (10/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤5W
Dimension
Product size : 485X138X45mm(WXDXH)
Simple packaging: 522X198X82mm(WXDXH)
Piece weight : 2.3KG
Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

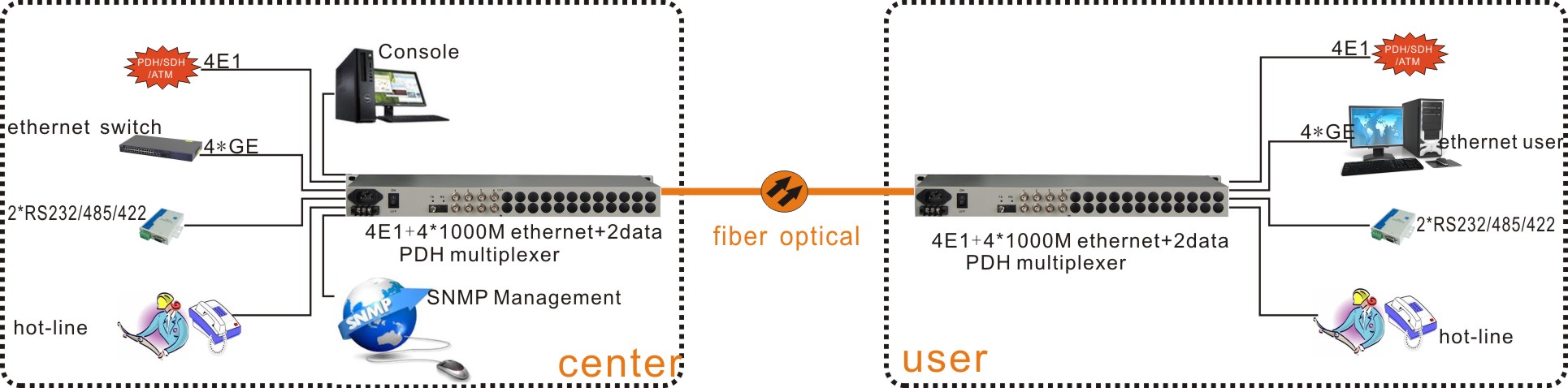

Networking Application
|
