    30PCM MUX with E1 link and optical link back up

    Ask Lasest Price
    Brand Name : Fibreasy
    Model Number : FC-PCM30F
    Certification : ISO CE ROHS
    Price : 1100usd/pair
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 1000pcs/week
    Delivery Time : 5~8 working days
    • Product Details
    • Company Profile

    30PCM MUX with E1 link and optical link back up

    30 lines PCM multiplexer with E1 link and Fiber link backup


    Order information


    1. 30 FXO/FXS
    2. 1~4FE
    3. Work with E1 , Fiber , E1+Fiber network solution
    4. 19inch with AC or DC power supply

    The product overview


    FC-OV60 series device is the primary PCM multiplexing equipment in digital communication system .This device has various of interface boards ,provides voice , data ,images and other signals together in a standard 2M interface ,point to point transmission solution. While Providing the optical interface transmission ,4 port 100M Ethernet and 1 port independent 2M E1.


    ModelFiber PortE1ETHMUX PortSize
    PCM8-1-n*819inch×1U
    PCM8F1--n*819inch×1U
    PCM8FE11-n*819inch×1U
    PCM8FM1-1n*819inch×1U
    PCM8FME111n*819inch×1U
    PCM8FM41-4n*819inch×1U
    PCM8FM4E114n*819inch×1U
    PCM16-1-n*1619inch×1U
    PCM16F1--n*1619inch×1U
    PCM16FE11-n*1619inch×1U
    PCM16FM1-1n*1619inch×1U
    PCM16FME111n*1619inch×1U
    PCM16FMD1-2n*1619inch×1U
    PCM16FMDE112n*1619inch×1U
    PCM30-1-n*3019inch×1U
    PCM30F1--n*3019inch×1U
    PCM30FE11-n*3019inch×1U
    PCM30FM1-1n*3019inch×1U
    PCM30FME111n*3019inch×1U
    PCM30FMD1-2n*3019inch×1U
    PCM30FMDE112n*3019inch×1U
    PCM60F1--n*6019inch×2U
    PCM60FM1-1n*6019inch×2U
    PCM60FMD1-2n*6019inch×2U

    Functional Features

    1. Provides 8/16/30 lines FXO/FXS
    2. Voice FXO / FXS access, support caller ID function
    3. Supports reverse polarity billing functions;
    4. Supports use of 2M circuit transmission directly.
    5. Supports use of optical fiber transmission ;provides 1/2/4 port 100M Ethernet and E1 channel.
    6. improved the status display function, easy maintenance and management;
    7. small size, attractive appearance, easy installation;

    Working Environment

    1. Working Temperature:0℃~40℃
    2. Working Humidity:≤90%(25℃)

    Power Supply

    1. Input voltage: -48V
    2. Allowable voltage swing:-36V~-72V
    3. Input Current:<1A

    Modules Main Technical Index


    link Interface:

    Standard E1 interface, complies with ITU-T G.703,G.704,G.712 ,all-digital clock recovery and smooth phase-locked technology

    1. Interface bit rate: 2048Kbps±50ppm
    2. Interface Code: HDB3
    3. E1 Impedance: 75Ω/120Ω
    4. E1 connector: BNC/RJ45
    5. Allowed Attenuation : 0~6dBm

    Optical Fiber

    1. Single mode transmitting power:-3dBm ~ -8dBm
    2. Single mode receiver Sensitivity :-33dBm ~ -40dBm
    3. Fiber connector:Dual port SC/Dual port FC/Single port SC optional
    4. Fiber model: single mode fiber , double mode fiber

    User’s Interface

    FXO/FXS interface

    • Two-line Impedance:600Ω
    • Insert Loss:-3±0.75dB
    • Frequency Characteristics:300~3400Hz(-0.6~+3dB)
    • Weighted Noise:≤63.7dBmop
    • Crosstalk Attenuation: ≥65dB
    • Loop Resistance: ≤1800Ω

    2/4 line or EM2/4 line

    • Impedance:200Ω+680Ω||0.1μF
    • 4 wire AD gain:14dB(adj.)
    • 4 wire DA gain:-2dB(adj.)
    • 4 wire AD Frequency Characteristic:-0.2 - +0.2dB
    • 4 wire DA Frequency Characteristic:-0.2 - +0.2dB
    • 2 wire AD Frequency Characteristic:-0.2 - +0.2dB
    • 2 wire DA Frequency Characteristic:-0.2 - +0.2dB(adj.)
    • Return Loss: 40dB
    • Balanced:70dB
    • Common-mode rejection ratio:70dB
    • Power rejection ratio:30dB
    • Idle channel noise:≥65dB
    • Loop Resistance: 600Ω

    V.24(RS232)Interface

    • Interface Type:V.24 data asynchronously
    • Interface Rate:0–19.2Kbps

    V.35 Interface

    • Interface Type:V.35 data synchronously
    • Interface Rate: Nx64Kb/s(N =1~15)
    • Connect clock mode:DCE

    10/100MBase-T Interface (when link is E1 transmission)

    • Interface Type :10/100MBase-T
    • Interface Rate:10/100Mbps
    • Transfer Rate:Nx64Kb/s(N = 1~30)
    • Protocol: Link layer bridging

    10/100MBase-T Interface(When link is optical road support)

    • Interface Type:10/100MBase-T
    • Interface Rate:10/100Mbps
    • Transfer Rate:100Mbps

    Demension

    210mm(W)×480mm(L)×44mm(H) , 19inch 1U . 7kg


    Network Application


    Working with fiber link

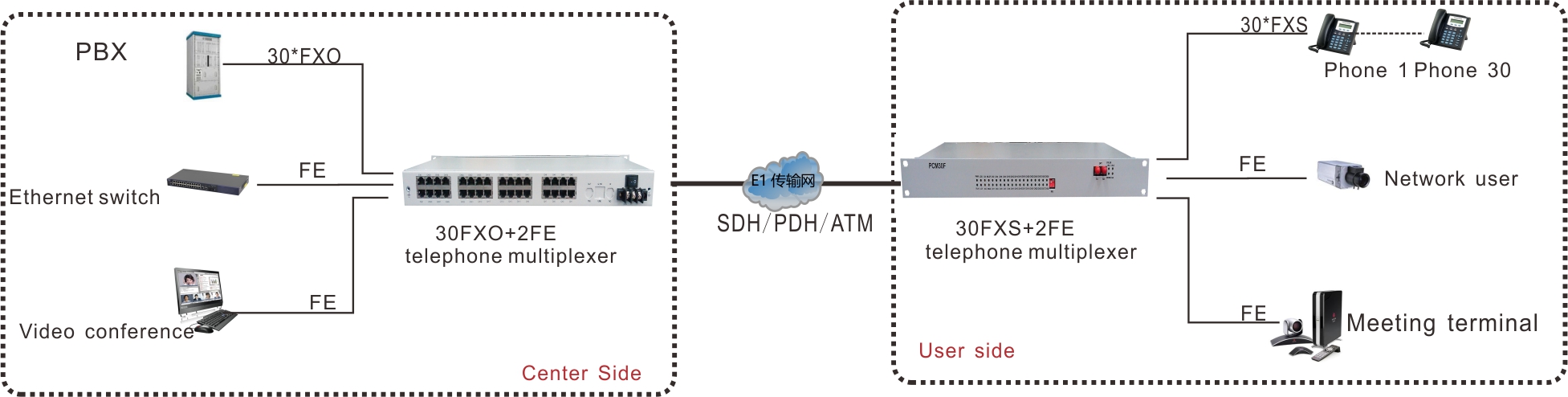

    Working with E1 link



    Any interesting ,please contact with us by skype live : soda.wu ! Working together , Happy more!
